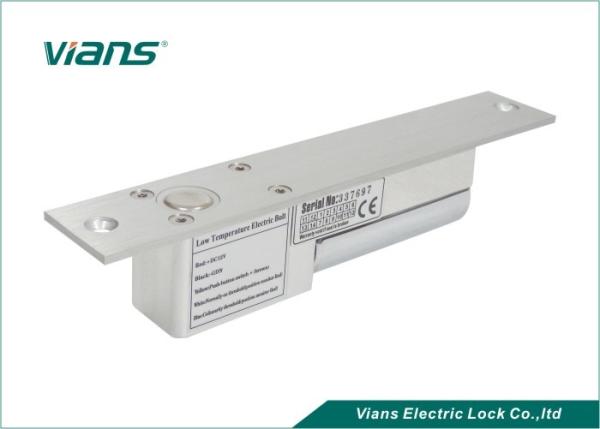

Time delay lower temperature Intelligent 12 V electric bolt lock with signal output
VIANS Fail Safe Electric Bolt with Timer offered features quality construction support and comes with
option of face plate of 205Lx35Wx40H(mm), cover plate of 215L x 40W x 0.7H (mm) and bolt support of
16mmDIA in stainless 16mm throw finish. These electric bolts also come with aluminum panel support
and come with current draw of start 950Ma and standby 110mA. Some of its features include provides for
multi-functional usage including in combination with glass, wood and metal doors, suitable for use with
frameless glass door & swing-in door, comes with built-in photo-electric control as well as low
temperature design for safe access control, suitable for use in low temperatures, long service life and
others.
Advantage of the products
◆ Photoelectric control technology, prevent mechanical failure.
◆ Ultra-low temperature design, Safer and more durable.
◆ Ultra-low-power design, More durable and more environmentally friendly.
◆ More than 500 000 working times.
◆ Built-in reverse current and prevention device (MOV).
◆ Intelligent single chip configuration, three types current application.
◆ High strength aluminum alloy lock body, stainless steel lock bolt.
◆ Products pass the EU CE and china MA qualified certification.
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 205Lx35Wx40H(mm) |
| Strike Size | 90Lx25Wx2H(mm) |
| Input Voltage | DC12V±10% |
| Start Current | 950mA |
| Working Current | 110mA |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay | YES |
| Signal output | YES |
| Security Type | Locked when energized |
| Weight | 0.72KG |
Installation drawing
Relates Products:
Here is our bolt lock series, Any questions Welcome contact us.
Exhibtions:
We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very
year, welcome you come to visit us :)
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
For mor informations. Please send us your detail inquiry. VIANS Looking forward to offer our high
products with best service to you!
